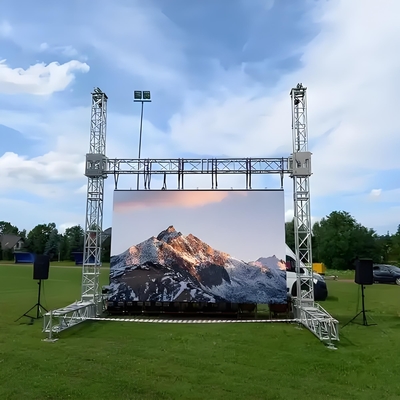

High Performance Led Rental Screen High Resolution For Outdoor Events

High Performance Led Rental Screen High Resolution For Outdoor Events

Outdoor Led Screen Panels Rental P2.604mm P3.91 Outdoor Rental Led Display

Outdoor Led Screen Panels Rental P2.604mm P3.91 Outdoor Rental Led Display

P0.78mm COB Led Display High Resolution 150*168.75mm Size Highlight

P0.78mm COB Led Display High Resolution 150*168.75mm Size Highlight

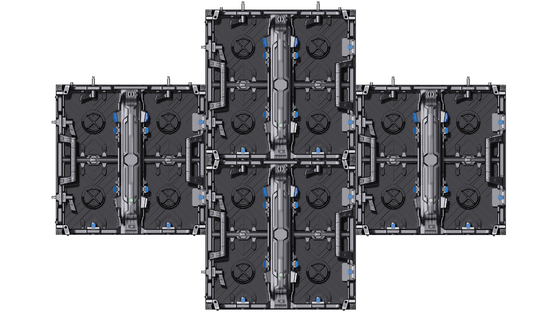

P3.91mm Outdoor Rental LED Screen With Novastar System Fixed Installation

P3.91mm Outdoor Rental LED Screen With Novastar System Fixed Installation

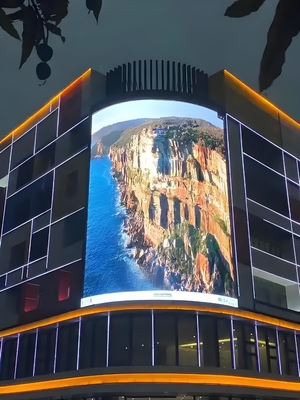

Outdoor P10 Led Video Wall High Impact Built To Endure Harsh Conditions

Outdoor P10 Led Video Wall High Impact Built To Endure Harsh Conditions

SMD Indoor Rental LED Screen P1.56 RGB Easy Installation 500*500mm

SMD Indoor Rental LED Screen P1.56 RGB Easy Installation 500*500mm

Contact Us
Miss. Amy
+8613712593649
8613712593649
13712593649 wechat

FAQ

Pixel Pitch Explained: How to Choose the Right LED Display?

What is Pixel Pitch in LED Displays?
Pixel pitch refers to the distance (in millimeters) between the centers of two adjacent LED pixels on a display. It's the primary factor determining image clarity and optimal viewing distance.

Key Details:
1. Measurement
   - Expressed in millimeters (e.g., P1.2, P2.5, P4, P10)
   - Smaller number tighter pixel spacing  higher resolution

2. Viewing Distance Formula
   Optimal viewing distance (meters) ≈ Pixel pitch (mm) × 2~3
   Example: A P3 screen is best viewed from 6-9 meters away

3. Common Applications by Pitch
    Pixel Pitch | Typical Use Case |
   | P0.9-P1.5 | Broadcast studios, luxury retail |
   | P1.6-P2.5 | Corporate lobbies, control rooms |
   | P2.6-P4 | Indoor signage, event venues |
   | P5-P10 | Outdoor billboards, stadiums |

4. Trade-offs
   - Smaller pitch:
  Higher resolution
  Higher cost
  Increased power consumption

   - Larger pitch:
 More affordable
 Better for long-distance viewing
 Lower pixel density

Pro Tip:

 For boardroom installations, P1.8-P2.5 balances cost and clarity. Outdoor digital signage typically uses P6-P10 for better visibility at 20+ meters.

Technical Note: Pixel pitch directly affects:
- PPI (pixels per inch)
- Cabinet size (smaller pitch requires more modules for same screen size)
- Content requirements (higher pitch needs simpler graphics)
